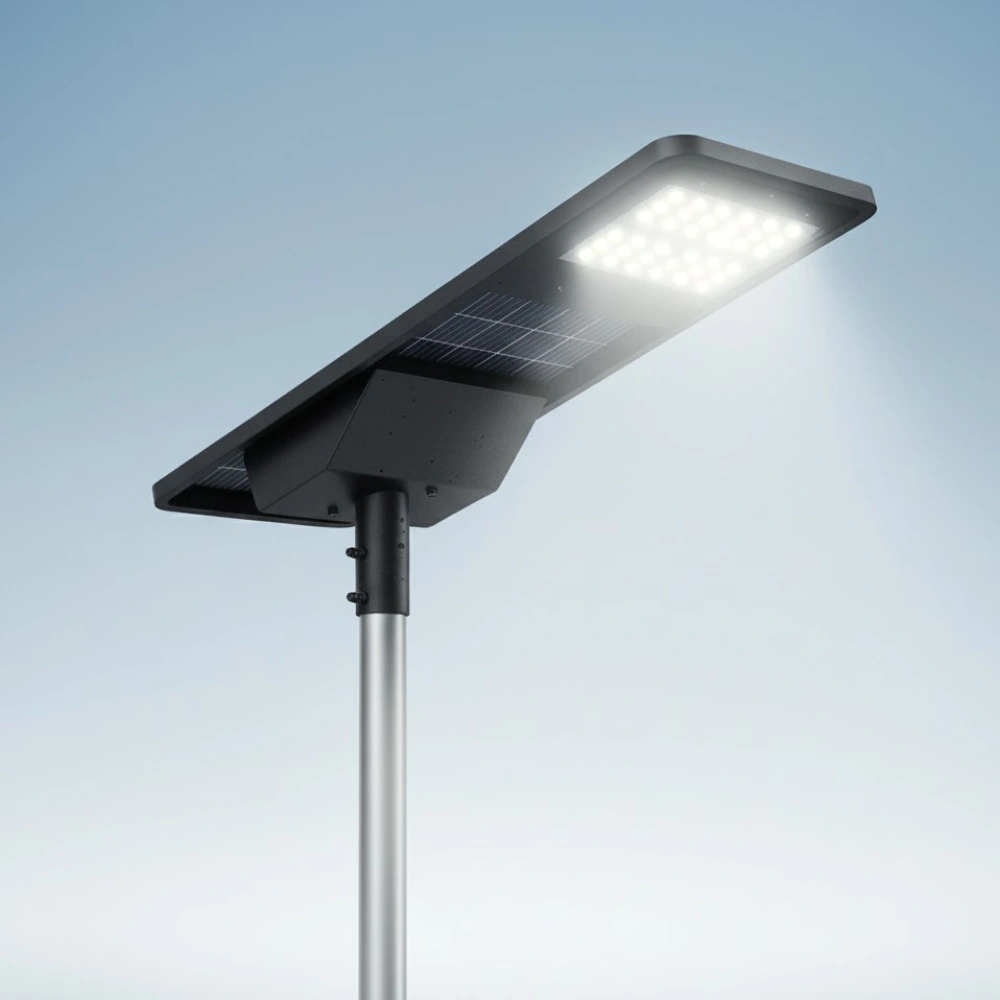

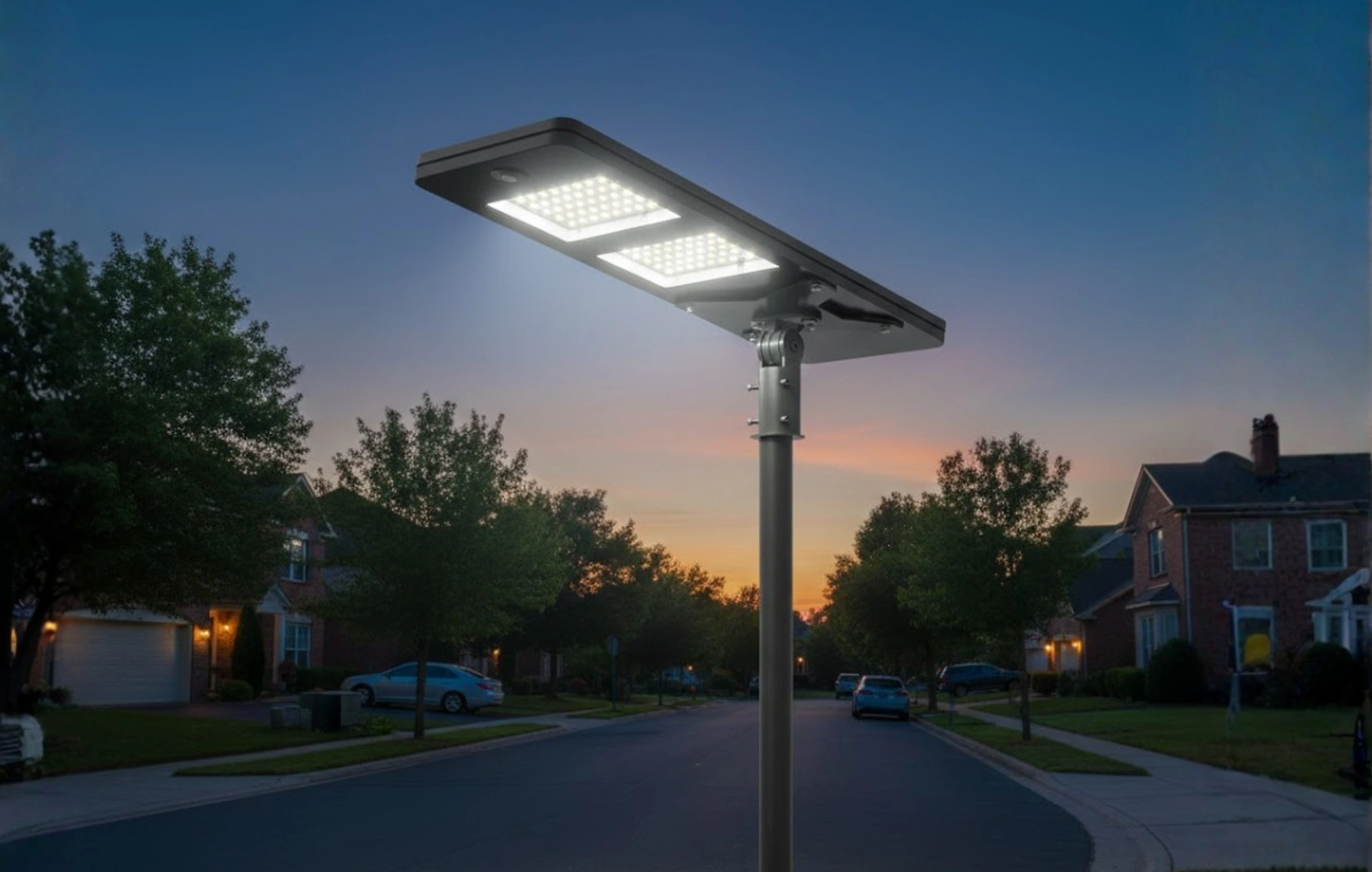

All-in-One Solar Street Light
United Ecoenergy brings you advanced All-in-One Solar Street Lights featuring a compact, fully-integrated design where the solar panel, LED module, LiFePO4 battery, and smart controller are housed in a single streamlined unit. These lights deliver high-efficiency performance with zero grid dependency, making them ideal for pathways, residential roads, campuses, public parks, industrial sites, and rural lighting needs.
Equipped with high-efficiency mono/mono-perc solar panels, OSRAM high-lumen LEDs, and an intelligent Battery Management System (BMS), our All-in-One models ensure powerful illumination, superior battery safety, and long service life. With features like motion-based adaptive dimming, dusk-to-dawn automation, and IP66 weatherproof protection, these lights are engineered for durability, reliability, and maximum energy savings — even in harsh outdoor environments.

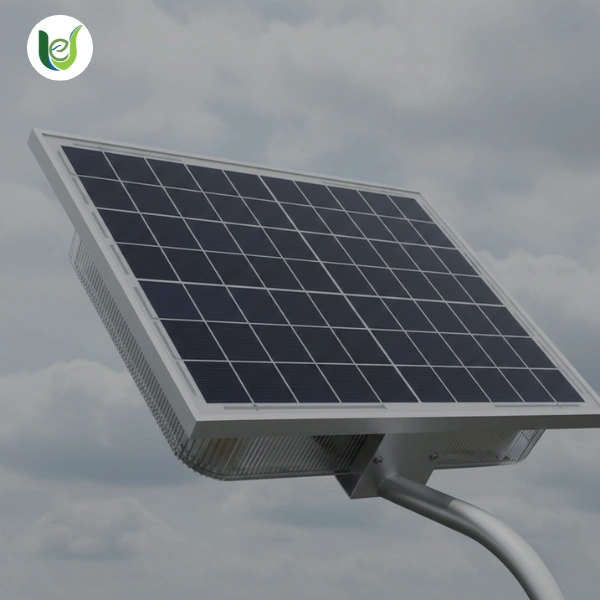

High-Efficiency Solar Panel
High Lumen LED Output

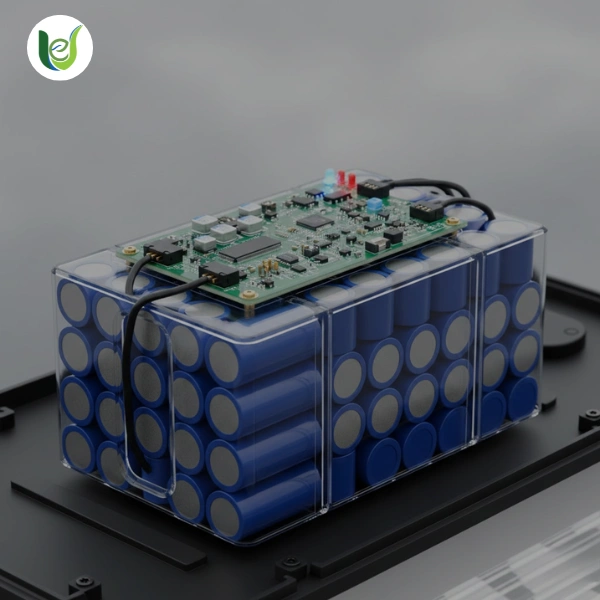

Long-Life LiFePO₄ Battery
BMS: Over charge, deep charge, short circuit protection.
99% MPPT efficiency for optimal power utilization.
Motion Sensor & Adaptive Dimming
Dusk-to-Dawn Automatic Operation
IP66 Weatherproof Protection
Heavy-Duty Anti-Rust Housing
Multiple Wattage & Model Options Available.
All-in-One Solar Street Light Technical Specification
| Product Code | UEC-10A | UEC-12A | UEC-15A | UEC-18A | UEC-20A | UEC-25A | UEC-30A |
|---|---|---|---|---|---|---|---|
| Power Output (W) | 10W | 12W | 15W | 18W | 20W | 25W | 30W |
| Lumens per Watt | 140-160 | 140-160 | 140-160 | 140-160 | 140-160 | 140-160 | 140-160 |
| LED type | OSRAM LED | OSRAM LED | OSRAM LED | OSRAM LED | OSRAM LED | OSRAM LED | OSRAM LED |
| Color Temperature | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K |
| CRI | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 |
| Operating Temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Operating Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Battery Capacity (AH) | 12 | 12 | 12 | 18 | 18 | 24 | 30 |
| Advance BMS | YES | YES | YES | YES | YES | YES | YES |
| Solar Panel Type | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly |
| Solar Panel (W) | 40W | 40W | 40W | 50W | 50W | 60W | 75W |
| Panel Efficiency | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% |
| Charged Controller | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT |
| Housing Material | Aluminium with powder coating | Aluminium with powder coating | Aluminium with powder coating | Aluminium with powder coating | Aluminium with powder coating | Aluminium with powder coating | Aluminium with powder coating |
| Ingress Protection (IP Rating) | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Expected LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
