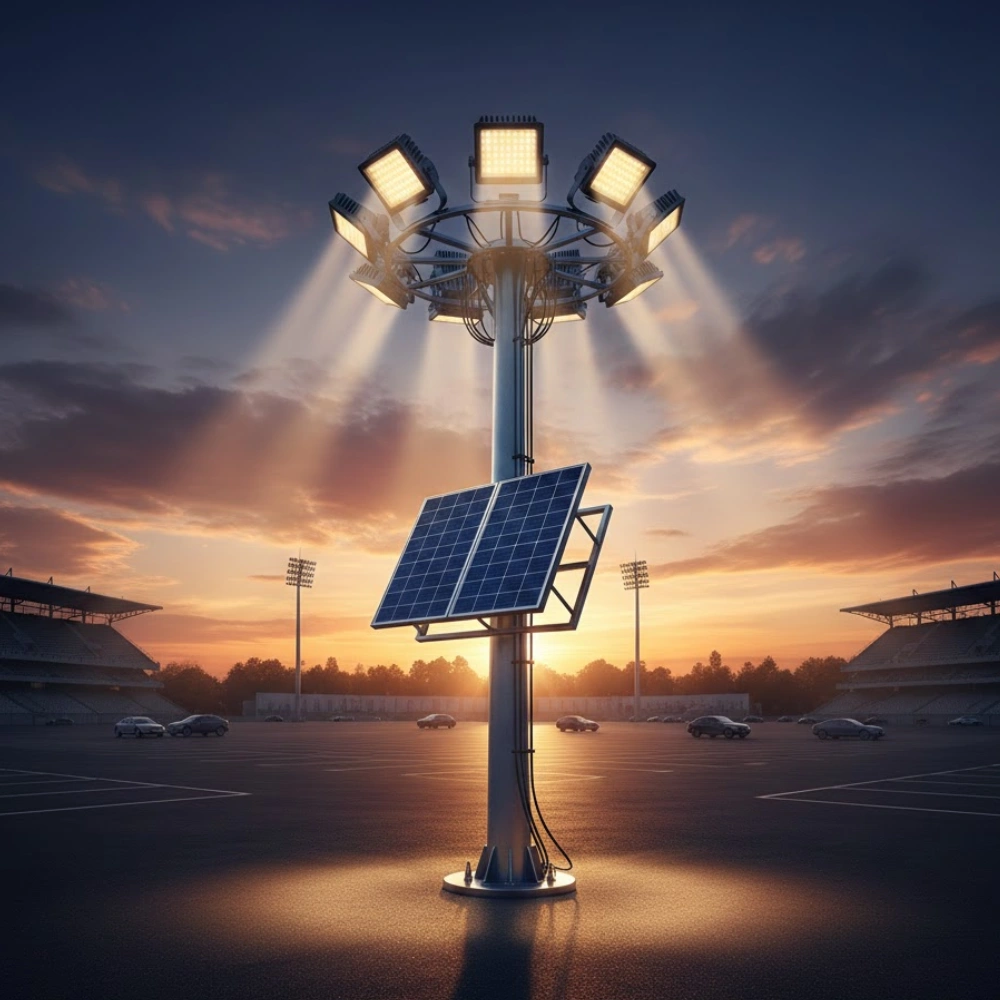

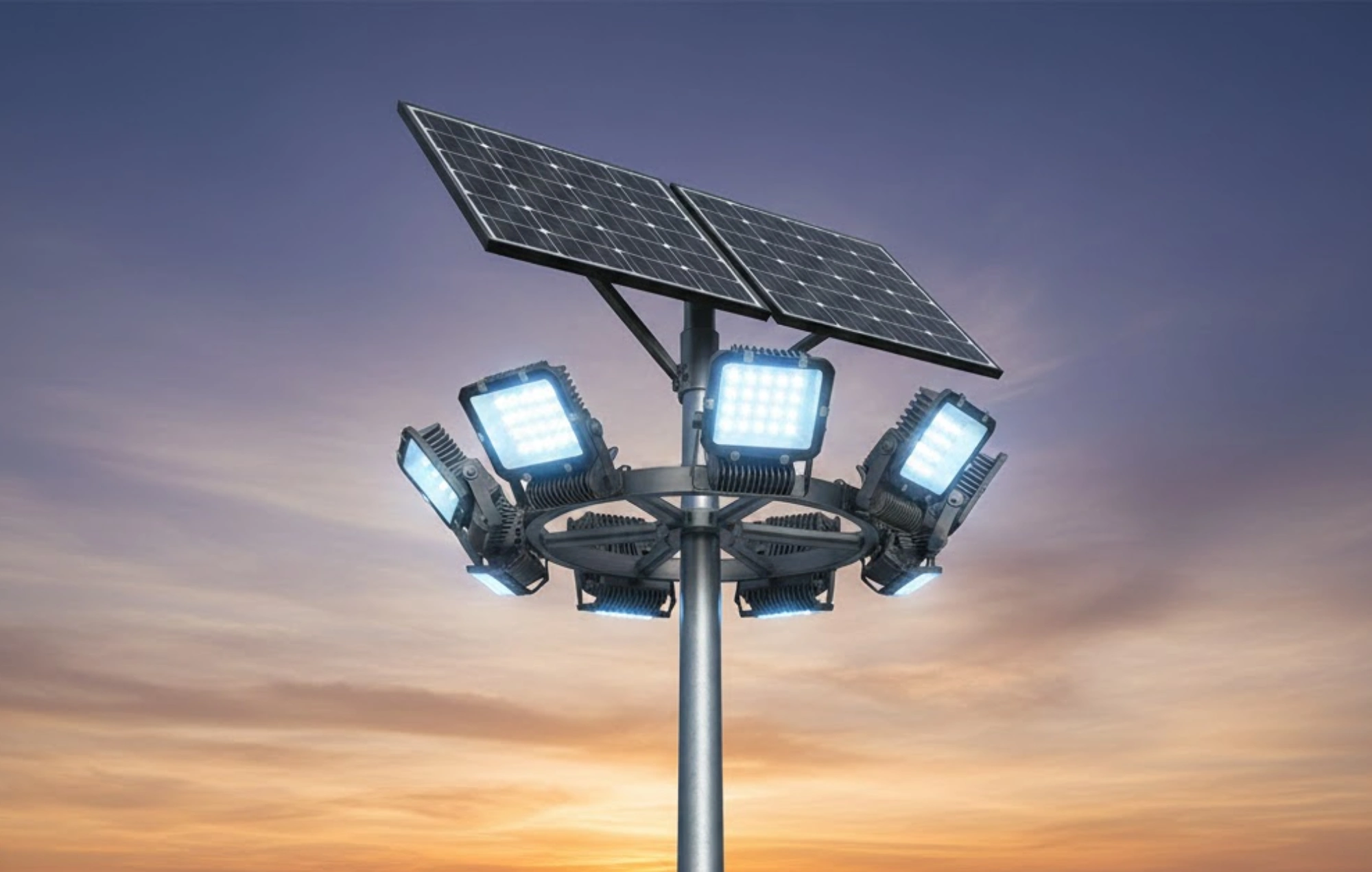

Solar High Mast Lights
United Ecoenergy brings you high-performance Solar High Mast Lights—a sustainable solution for lighting massive areas like stadiums, highways, industrial zones, and parking lots. These lights are completely off-grid and built with high-efficiency solar panels, durable lithium batteries, and high-output LEDs for unmatched reliability and eco-friendliness.
Engineered for large-scale applications, our Solar High Mast systems feature premium monocrystalline solar panels, long-life LiFePO₄ batteries with robust BMS protection, and smart lighting controls with automatic dusk-to-dawn operation. With IP66 weatherproof construction and heavy-duty aluminum housing, these lights deliver powerful illumination while withstanding harsh outdoor conditions.

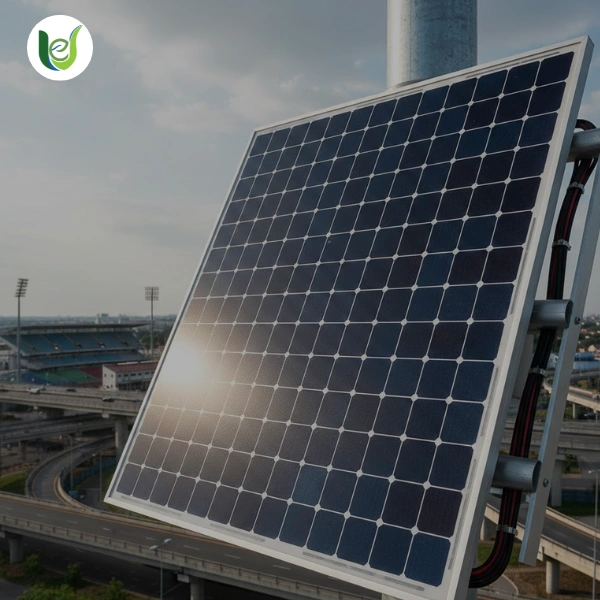

High-Efficiency Solar Panel
High Lumen LED Output

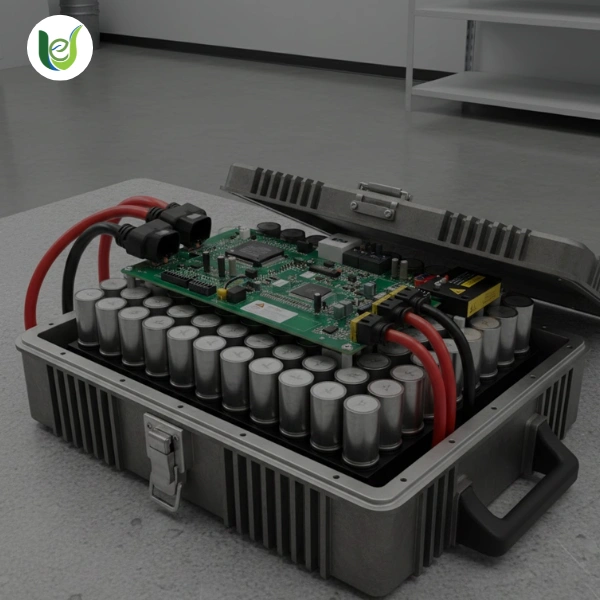

Long-Life LiFePO₄ Battery
BMS: Over charge, deep charge, short circuit protection.
99% MPPT efficiency for optimal power utilization.
Motion Sensor & Adaptive Dimming

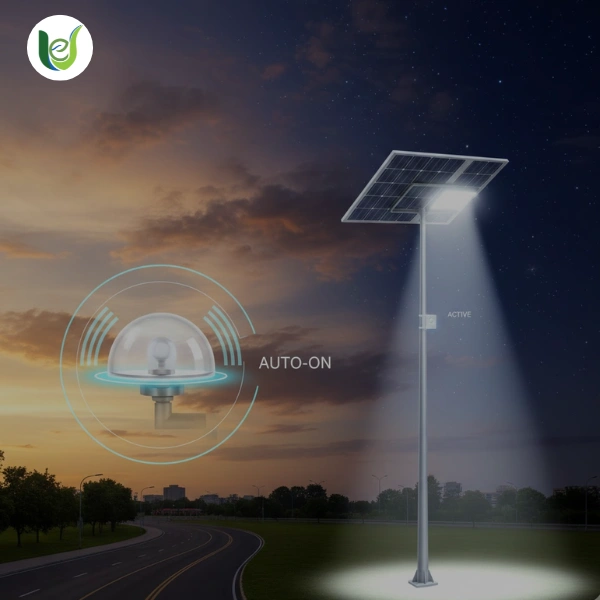

Dusk-to-Dawn Automatic Operation
IP66 Weatherproof Protection

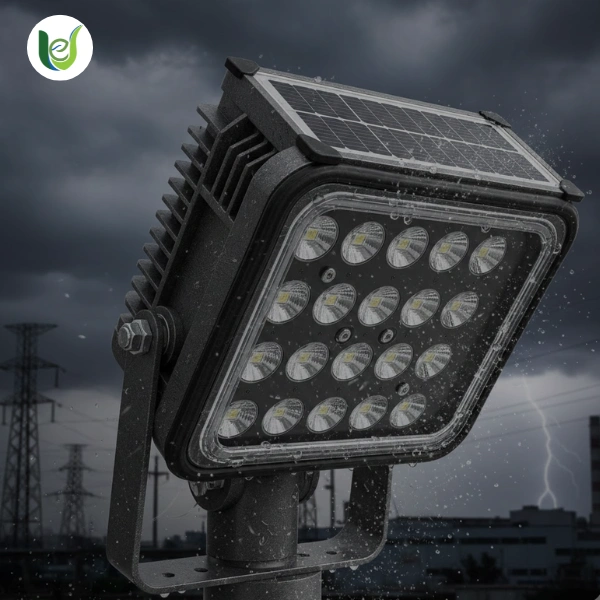

Heavy-Duty Anti-Rust Housing
Multiple Wattage & Model Options Available.
Solar High Mast Configuration
| S.No | Product Code | Pole Height | Light Watt | No. of Lights | System Wattage (W) | Battery | Panel | Lumens |
|---|---|---|---|---|---|---|---|---|
| 1 | UEC-4L-09H | 6 m GI | 9 W | 4 | 36 | 12Ah × 4 | 40W × 4 | 5040 |
| 2 | UEC-4L-12H | 6 m GI | 12 W | 4 | 48 | 12Ah × 4 | 40W × 4 | 6720 |
| 3 | UEC-4L-15H | 6 m GI | 15 W | 4 | 60 | 12Ah × 4 | 40W × 4 | 8400 |
| 4 | UEC-4L-20H | 6 m Oct | 20 W | 4 | 80 | 18Ah × 4 | 50W × 4 | 11200 |
| 5 | UEC-5L-20H | 6 m Oct | 20 W | 5 | 100 | 18Ah × 5 | 50W × 5 | 14000 |
| 6 | UEC-4L-30H | 6 m Oct | 30 W | 4 | 120 | 30Ah × 4 | 75W × 4 | 16800 |
| 7 | UEC-5L-30H | 6 m Oct | 30 W | 5 | 150 | 30Ah × 5 | 75W × 5 | 21000 |
| 8 | UEC-4L-7O-20H | 7 m Oct | 20 W | 4 | 80 | 18Ah × 4 | 50W × 4 | 11200 |
| 9 | UEC-5L-7O-20H | 7 m Oct | 20 W | 5 | 100 | 18Ah × 5 | 50W × 5 | 14000 |
| 10 | UEC-4L-7O-30H | 7 m Oct | 30 W | 4 | 120 | 30Ah × 4 | 75W × 4 | 16800 |
| 11 | UEC-5L-7O-30H | 7 m Oct | 30 W | 5 | 150 | 30Ah × 5 | 75W × 5 | 21000 |
| 12 | UEC-4L-50H | 9 m Oct | 50 W | 4 | 200 | 42Ah × 4 | 165W × 4 | 28000 |
| 13 | UEC-6L-60H | 9 m Oct | 60 W | 6 | 360 | 48Ah × 6 | 200W × 6 | 50400 |
