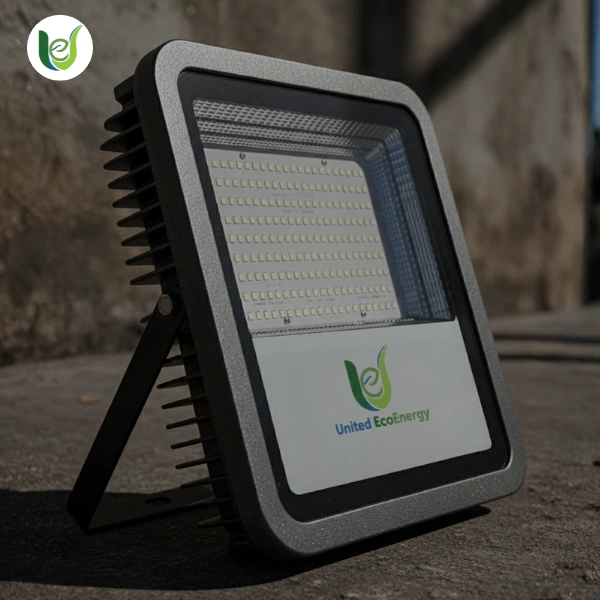

Solar Flood Light
United Ecoenergy introduces the high-performance Solar Flood Light, designed for powerful wide-area illumination with maximum energy efficiency. Equipped with high-efficiency monocrystalline solar panels, long-life LiFePO4 batteries, and ultra-bright LED chips, this system ensures consistent lighting throughout the night without relying on the grid.
Built with an intelligent MPPT/solar controller, automatic dusk-to-dawn operation, and optional PIR motion sensing, our Solar Flood Lights provide superior brightness and extended backup even during cloudy days. The IP66 weather-resistant body and robust aluminum housing make it ideal for outdoor applications such as stadiums, warehouses, billboards, parking areas, gardens, farms, and industrial sites.
High-Efficiency Solar Panel
High Lumen LED Output
Long-Life LiFePO₄ Battery
BMS: Over charge, deep charge, short circuit protection.
99% MPPT efficiency for optimal power utilization.
Motion Sensor & Adaptive Dimming
Dusk-to-Dawn Automatic Operation
IP66 Weatherproof Protection
Heavy-Duty Anti-Rust Housing
Multiple Wattage & Model Options Available.
Solar Flood Light Technical Specification
| Product Code | UEC-09F | UEC-15F | UEC-20F | UEC-25F | UEC-30F | UEC-35F | UEC-40F | UEC-50F | UEC-60F | UEC-70F | UEC-80F |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Output (W) | 9W | 15W | 20W | 25W | 30W | 35W | 40W | 50W | 60W | 70W | 80W |
| Color Temperature | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K | 4100-6500K |
| CRI | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 | More than 70 |
| Operating Temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Battery Operating Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Battery Capacity (AH) | 12 | 12 | 18 | 24 | 30 | 30 | 36 | 42 | 48 | 60 | 72 |
| Advance BMS | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Solar Panel Type | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly | Mono/Poly |
| Solar Panel (W) | 40W | 40W | 50W | 60W | 75W | 100W | 120W | 165W | 200W | 200W | 250W |
| Panel Efficiency | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% | More than 17% |
| Charged Controller | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT |
| Ingress Protection | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Expected LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
