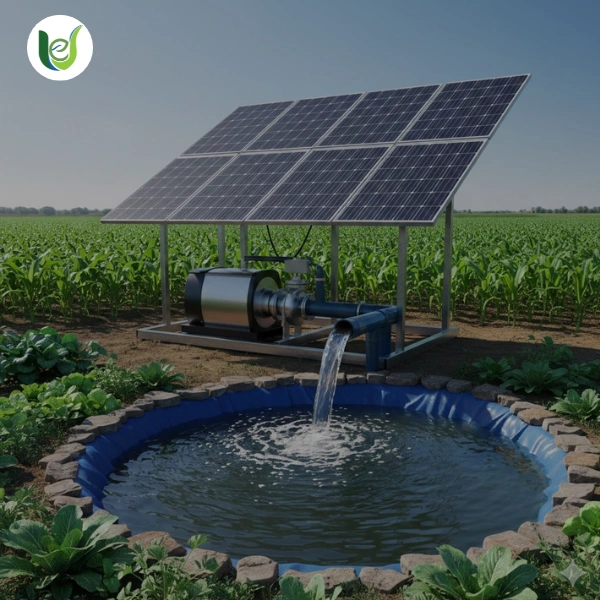

Solar Water Pump System

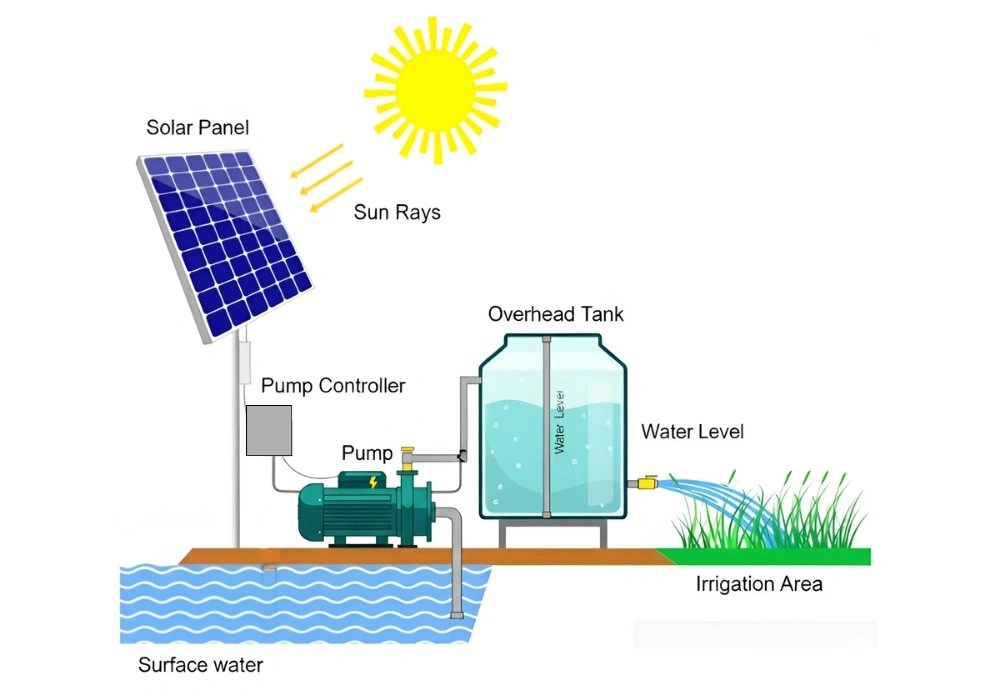

A Solar Water Pump is an eco-friendly and efficient solution designed to pump water using solar energy as its primary power source. The system uses high-efficiency photovoltaic (PV) panels to convert sunlight into electricity, which powers a motor-driven water pump through an advanced controller. It serves as a clean, cost-effective alternative to conventional electric pumps.
United Ecoenergy is one of India's leading solar water pump manufacturers, offering a wide range of high-performance borewell and open-well pumps. Ideal for agriculture, irrigation, farming, and rural water supply, our pumps are built with durable materials, require minimal maintenance, and deliver long operational life. With powerful solar panels, efficient MPPT controllers, and robust AC/DC pump options, our systems ensure reliable and continuous water delivery even in remote areas.
High-Efficiency Solar Panels
Wide Power Range Options
High Head & Flow Capacity
Advanced MPPT Controller
AC, DC & Hybrid Controller
Smart Protection System
Strong & Durable Build
Remote Monitoring & Control
Zero Operating Cost
Best for Agriculture
Solar Pump Model Types
| Component | UECPM-V4 | UECPM-V6 |
|---|---|---|
| Power Range | 0.5 HP to 10 HP | 3.0 HP to 50 HP |
| Head Range | 6.5 Metres to 410 Metres | 3 Metres to 465 Metres |
| Flow Rate | 75 LPM to 775 LPM | 730 LPM to 7350 LPM |
| Material of Construction | SS304 / Cast Iron | SS304 / Cast Iron |
| Delivery Size (Diameter) | 1-1/4” (32mm), 1-1/2” (40mm) & 2” (50mm) | 2-1/2” (65mm), 3” (90mm) & 4” (100mm) |
| Direction of Rotation | Anti-Clockwise when viewed from delivery/discharge side | Anti-Clockwise when viewed from delivery/discharge side |
| Bore Size (Diameter) | 100 mm | 750 mm |

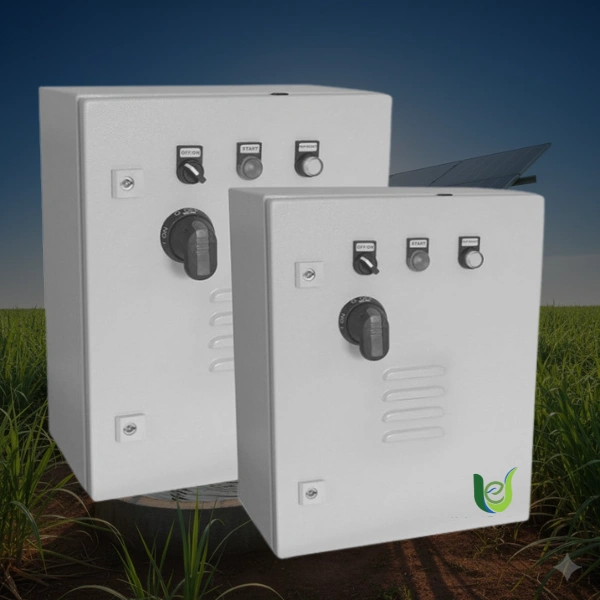

Solar Pump Controller Types
Pump AC Controller
Designed for AC motor pumps, offering stable and efficient performance for agriculture, irrigation, and high-power applications.
Pump DC Controller
Highly efficient controller optimized for DC pumps, ensuring maximum solar power utilization with low energy losses.
Hybrid (AC + DC) Controller
A versatile controller that supports both AC and DC pumps, providing flexibility for any installation and ensuring reliable operation.
Solar Water Pump Controller Features
IP65 Weatherproof Enclosure
Higher MPPT Efficiency
Remote ON / OFF System
Remote Monitoring System
Reverse Polarity Protection
In-Built SD Card
Dry Run Protection
Over Voltage Protection
Surge / Lightning Protection
